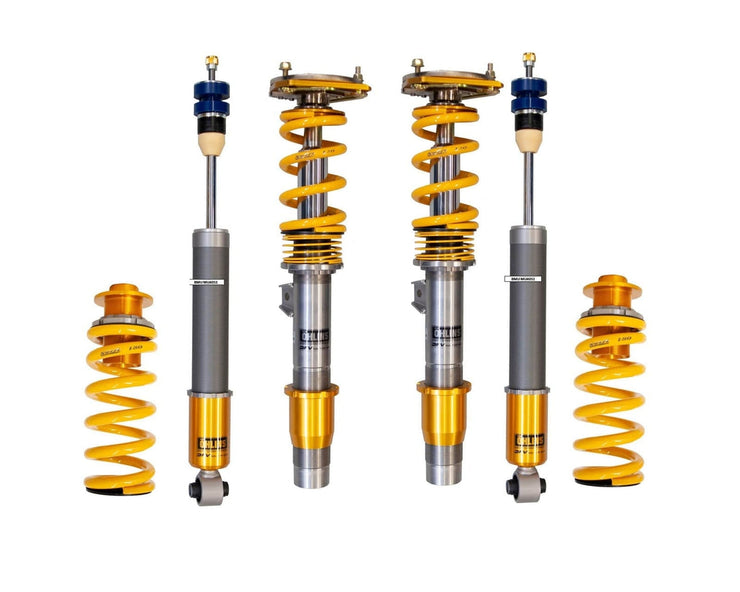

Ohlins Dedicated Track Coilovers - 2008-2013 BMW M3 (E90/E92)
Ohlins Dedicated Track Coilovers for the 2008-2013 BMW M3 (E90/E92) demonstrates Öhlins' ability to engineer capable trackday suspension packages tuned ready to install and hit the track with minimal setup/testing. Öhlins’ Dual Flow Valve technology (DFV) provides an uncompromised balance of chassis control and composer over rough sections of track and curbing. Driver confidence and precision are enhanced to a new level. Ride height and damping control are adjustable for the exact specifications desired from the driver. Systems feature monotube damper architecture for improved response with strengthened inverted struts and aluminum body shocks for lightweight and improved cooling effect. This combination of features and tuning result in the ultimate trackday bolt on suspension package.
Features
- Patented DFV and STX Technologies
- Shake rig developed and track validated
- Utilizing Swift brand race springs
- Fully customizable spring rates (spring rates vary depending on application, custom spring rates are available)
- Patented Dual Flow Valve
- Track-focused Tuning
- Height Adjustable
- 20 Clicks of Adjustable Damping
- Monotube Design
- Rebuildable
- Off-road Use Only
Specifications
| Front | Rear | |
| Technology: | DFV | DFV |
| Target Ride Height Reduction: | 15mm | 10mm |
| Additional Height Adjuster: | Yes | Yes |
| Upper Mounts: | Camber Adjustable/Spherical | Polyurethane |
| Spring Rates: | 120 N/mm | 12 Kg/mm | 672 Lbs/in | 180 N/mm | 18 Kg/mm | 1008 Lbs/in |
| Spring Part Numbers: | U00159-36 | U00159-35 |
Notes
- Note 1: System includes spherical upper mounts.
- Note 4: System includes spherical front upper mounts and polyurethane rear.
- Note 5: Includes Swift manufactured springs made to Öhlins specs.
Vehicle Fitment
- 2008 BMW M3 (E90/E92)
- 2009 BMW M3 (E90/E92)
- 2010 BMW M3 (E90/E92)
- 2011 BMW M3 (E90/E92)
- 2012 BMW M3 (E90/E92)
- 2013 BMW M3 (E90/E92)
