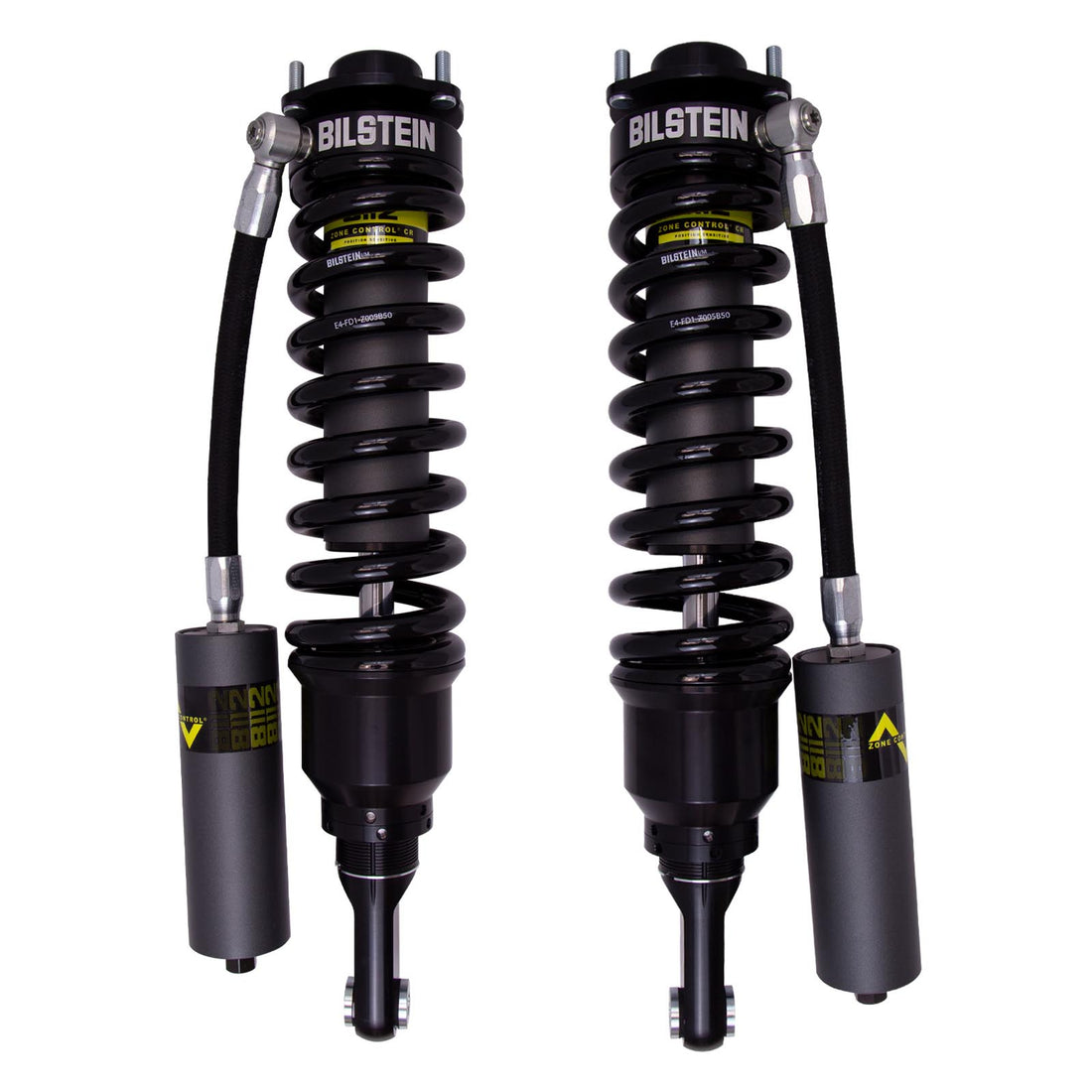

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1.5-3" lift - 2010-2024 Toyota 4Runner 4WD KDSS

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for 4WD vehicles, specifically the Toyota 4Runner from 2010 to 2024. It features position-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons, providing precise handling and comfort. The coilover includes a 2-stage internal compression stop for bottom-out control and an internal rebound stop to dissipate spring energy, reducing harsh top-out events. Its triple piston design ensures a smooth transition from daily driving to off-road terrain, while the external coil spring is vehicle-specific and preloaded to factory specs. The 60mm remote reservoir enhances oil capacity and cooling, with an anodized aluminum reservoir mount for durability. Constructed from aerospace-quality materials, this coilover offers reliable performance and longevity, backed by a two-year warranty.

Designed for 2010-2024 Toyota 4Runner 4WD models with KDSS, this coilover kit lifts the vehicle 1.5-3 inches in the front, excluding XREAS systems which must be removed. It is compatible only with 4WD configurations and requires an aftermarket upper control arm (UCA). The package includes two coilovers, washers, bushings, nuts, and reservoir mounts, with factory shock mounting bolts reused during installation. Optional billet aluminum reservoir clamps are available for a cleaner look. Suitable for off-road and street use, this bolt-on suspension upgrade enhances ride height, handling, and stability across various terrains.
