KC HiLiTES KC Wire Harness

Model 6316: For 1 or 2 Extra Lights

Part #: 6316

Overview

The KC HiLiTES KC Wire Harness Model 6316 is a versatile and reliable wiring solution designed to simplify the installation of additional auxiliary lights on your vehicle. Whether you're outfitting your off-road rig, truck, or SUV for enhanced visibility or aesthetic lighting, this harness provides a clean and efficient way to power up to two extra lights. Built with quality components and weatherproof sealing, it ensures your lighting system remains protected against the elements, making it ideal for off-road adventures, work sites, or everyday driving where extra illumination is beneficial.

Designed for enthusiasts who want a straightforward, safe, and professional-grade wiring setup, the Model 6316 harness allows you to add lighting without the hassle of complex wiring or modifications. Its plug-and-play design ensures a quick installation process, so you can enjoy improved visibility and a sleek, organized look in your vehicle's lighting system.

Key Features

The KC HiLiTES KC Wire Harness Model 6316 offers several technical advantages that enhance both performance and durability:

• High-quality wiring with weatherproof sealing to withstand harsh environmental conditions, including rain, mud, and dust.
• Includes a 40A relay capable of handling up to 260W of total lighting power, ensuring stable and safe operation of multiple lights.
• Illuminated rocker switch kit for easy operation and visibility, allowing you to control your lights conveniently from inside your vehicle.
• Complete mounting hardware and fuses included for a professional, secure installation.
• Designed to support up to two lights, each up to 55W, for a total maximum of 110W, making it suitable for a variety of auxiliary lighting setups.
• Weatherproof Deutsch connectors ensure reliable connections and ease of maintenance or upgrades.
• Compatible with a wide range of auxiliary lights, including LED, halogen, or HID options, providing flexibility for different lighting preferences.
• Plug-and-play design minimizes installation time and complexity, perfect for DIY enthusiasts and professional installers alike.

Construction & Design

The KC HiLiTES Model 6316 wiring harness is constructed with durable, weatherproof materials to ensure longevity and consistent performance in demanding environments. The wiring is insulated with high-quality, sealed connectors that prevent moisture ingress, corrosion, and damage from debris. The harness features a robust 40A relay designed to handle high wattage loads safely, protecting your vehicle's electrical system while providing ample power for your auxiliary lights.

The illuminated rocker switch is ergonomically designed for easy access and operation, with clear illumination for nighttime visibility. All mounting hardware and fuses are included, allowing for a clean, professional installation that maintains the integrity of your vehicle's wiring system. The Deutsch connectors facilitate quick connections and disconnections, making future upgrades or troubleshooting straightforward.

Installation & Fitment

The KC HiLiTES KC Wire Harness Model 6316 is designed for easy, bolt-on installation with minimal tools required. Its plug-and-play connectors allow you to connect your lights quickly and securely without cutting or splicing your vehicle's factory wiring. The harness includes all necessary mounting hardware and fuses, and the weatherproof Deutsch connectors ensure a reliable connection in any environment. No cutting, drilling, or complex wiring is necessary, making it suitable for both DIY enthusiasts and professional installers.

• Quick and straightforward installation process
• Compatible with a variety of auxiliary lights up to 55W each
• No additional relays or wiring modifications required

Once installed, simply connect your lights to the harness, turn on the illuminated switch, and enjoy enhanced visibility and a clean, organized lighting setup.

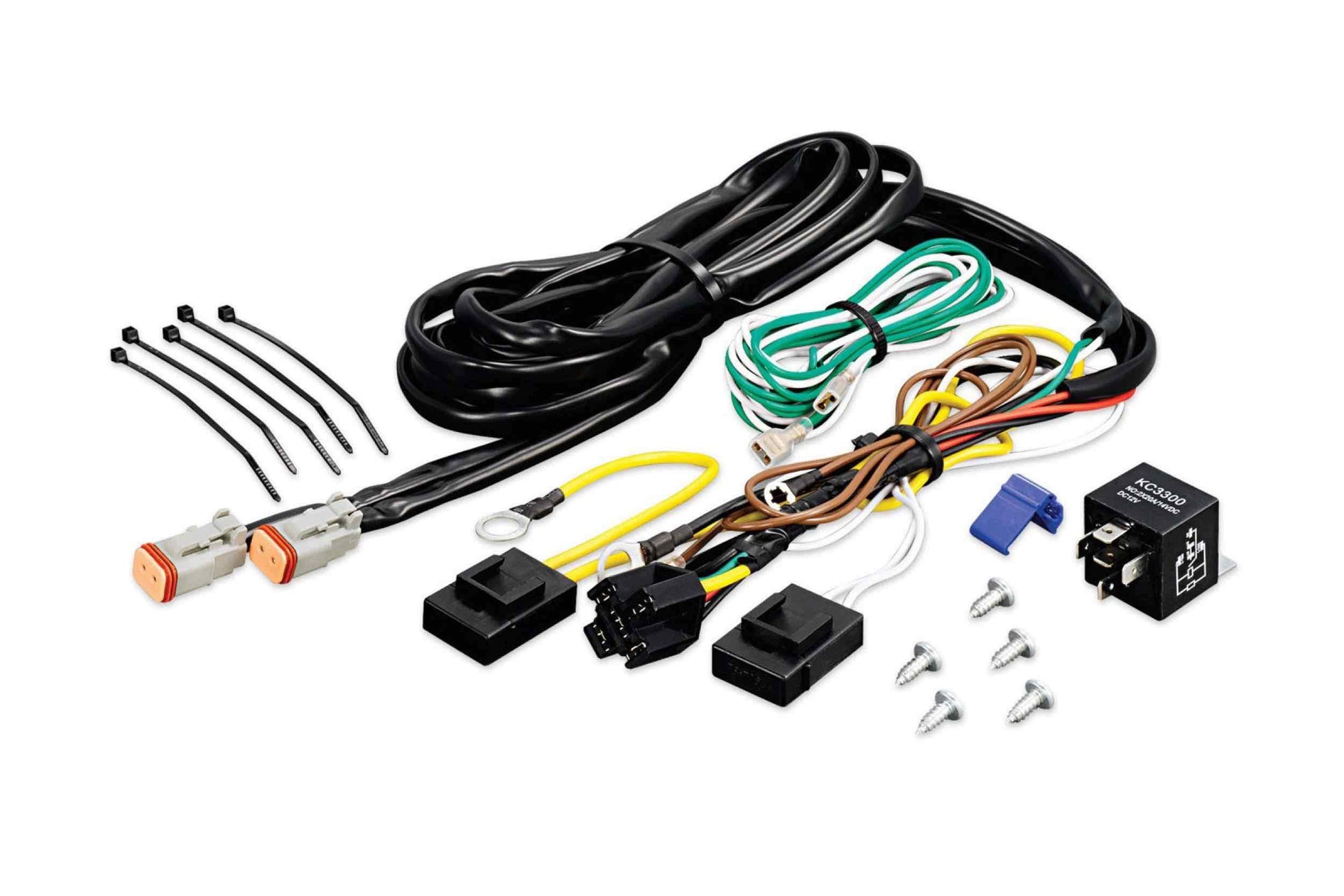

What's Included

• Wiring harness with weatherproof Deutsch connectors
• 40A relay capable of handling up to 260W
• Illuminated rocker switch kit
• Fuses and mounting hardware
• Complete instructions for installation

Ideal For

This wiring harness is perfect for off-road enthusiasts, truck owners, and anyone looking to add extra lighting to their vehicle for improved visibility and safety. It is suitable for use with LED, halogen, or HID auxiliary lights and is designed to support a variety of vehicle types, including trucks, SUVs, and Jeeps.
