Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump

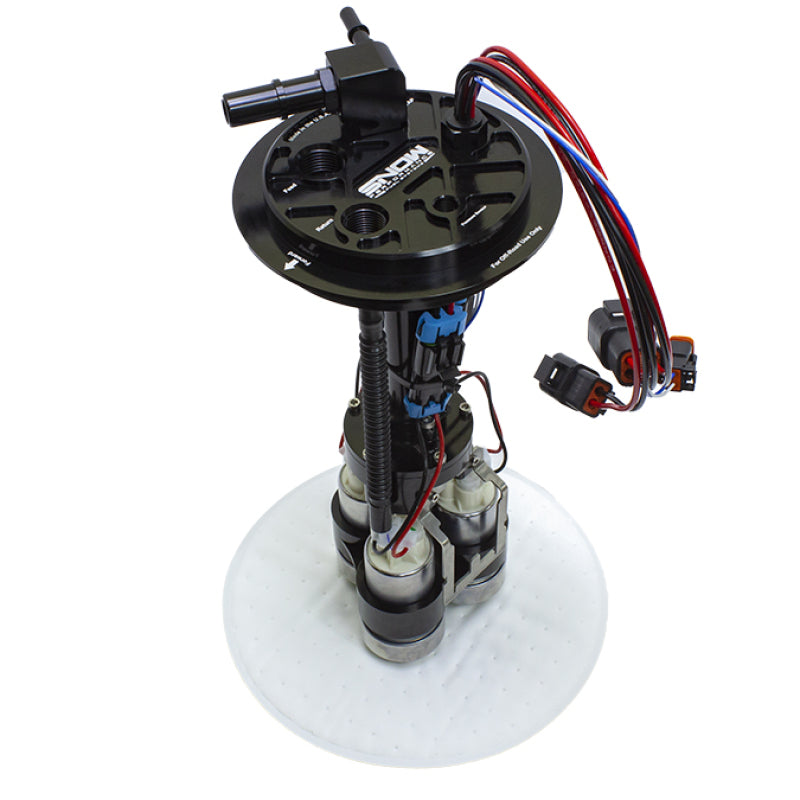

The Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump is a high-performance fuel delivery upgrade designed for GM half-ton trucks from 2005 to 2018. Constructed from CNC-machined 6061 billet aluminum with a black anodized finish, this fuel hat features a billet aluminum manifold with CNC passages that streamline fuel flow and eliminate the need for T-fittings, hoses, and clamps. It securely holds genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH, providing reliable, high-output fuel delivery. The assembly includes Viton chemical-resistant O-rings for a leak-free fit and is compatible with E85 and other harsh fuels, making it suitable for demanding performance applications. Designed to replace the factory fuel hat, it retains factory features such as the fuel level sender, EVAP system, and filler neck, offering a straightforward upgrade for increased fuel capacity and reliability.

This fuel hat is intended for use on GM half-ton trucks from 2005 to 2018, fitting various models with return-style fuel systems. It is compatible with gasoline, ethanol blends (E10, E85, E98), but not with methanol. The assembly features female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters sold separately for line routing customization. Suitable for street, track, or off-road use, this bolt-on upgrade provides a durable, corrosion-resistant solution for high fuel demands. It is designed for easy installation as a direct replacement of the factory unit, supporting configurations with two or three pumps to meet specific performance needs.
