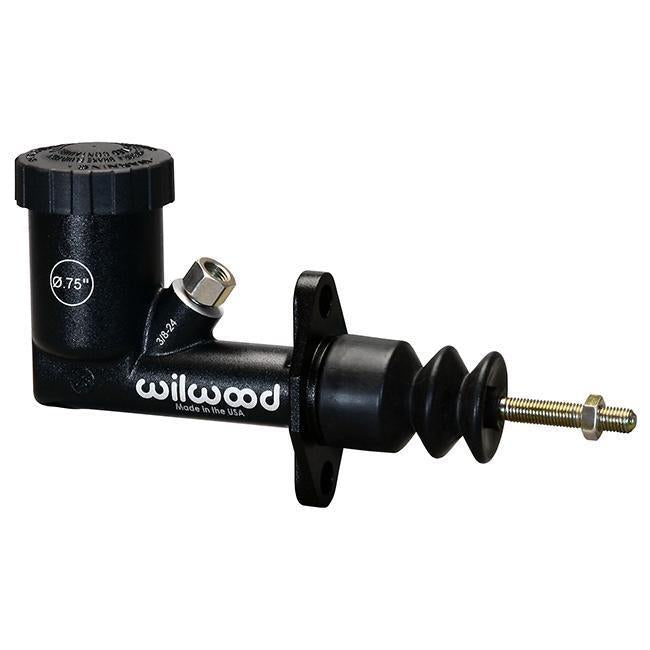

Wilwood GS Compact Integral Master Cylinder (260-15098)

GS Compact Integral Master Cylinder by Wilwood

Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish.

Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

Features

• High pressure die cast aluminum body
• Protective black e-coat finish
• Positive seal internal bellows cap
• Refined return spring and piston assembly
• Positive pressure control
• Quick and complete release

Applications

• Universal

Specifications

• Bore Size: 3/4"
• Area (in²): 0.440
• Stroke: 1.25
• Volume (cu in): 0.55
• Reservoir Size (oz): 1.5
• Reservoir Size (cu in): 2.7

What's In The Box?

• 1 - GS Compact Integral Master Cylinder

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
